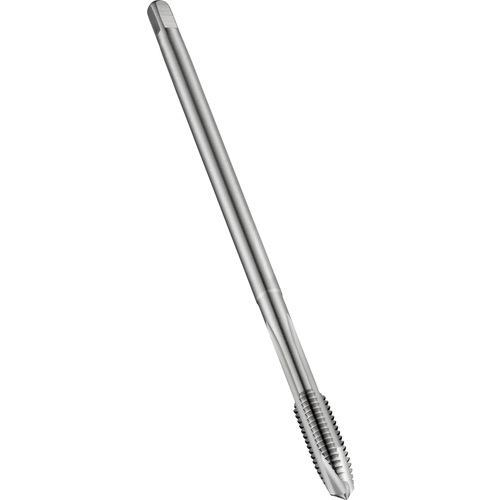

M6x1.0 6H Cobalt Spiral Point Long Tap-Bright E-code # E606M6
E-code # E606M6
| Thread Diameter Size (TDZ) | M6 | Tool Type | Machine Tap |
| Thread Pitch (TP) | 1 mm | Coating | Uncoated |
| Thread Standard | M | Style | Long |
| Overall Length (OAL) | 89 mm | Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Flute Type | Spiral Point |
| Cutting Edge Material | HSSE-PM | Series/List # | E606 |
| Thread Tolerance Class (TCTR) | 6H | Thread Size | M6 × 1 |
Product Features
| Family Description | E-code # E606M6 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.063
