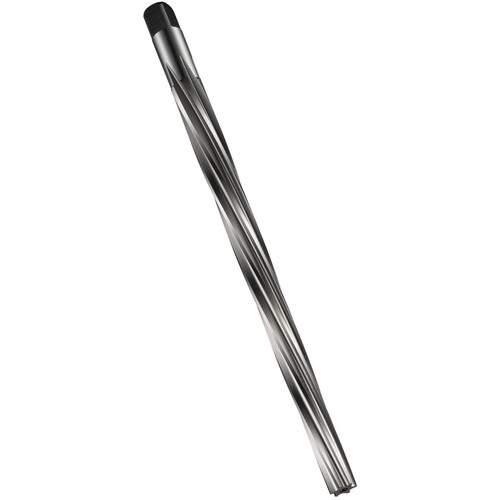

30.00 MM Dormer HSS Bright with Square Hand Taper Pin Reamer B DIN 9 E-code # B95230.0
E-code # B95230.0
Additional Tariff Surcharge of 8 %
| Tool Type | Taper Pin Reamers | Large End Diameter | 36.1 mm |
| Cutting Diameter (DC) | 29.7 mm | Diameter | 1.181″ |
| Length Chip Flute (LCF) | 320 mm | Small End Diameter | 29.7 mm |
| Flute Count (NOF) | 10 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Overall Length (OAL) | 400 mm | Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 31.5 mm | Coating | Uncoated |
| Cutting Direction (HAND) | Right Hand | Series/List # | B952 |
| Shank Type | Round w/ Drive Square |
Product Features
| Family Description | E-code # B95230.0 | Country of Origin | Japan |
Shipping Info
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
77.350
