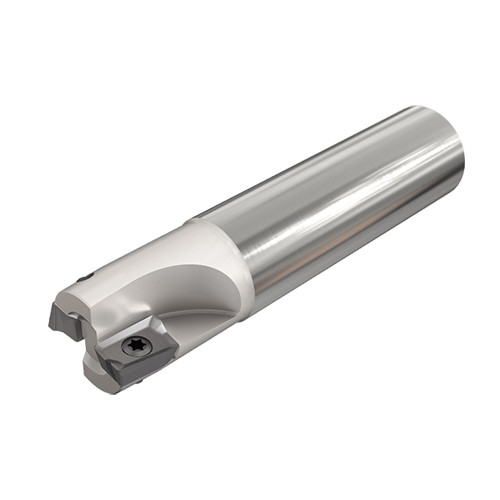

HM90 E90AD-D32-2-C32
90° endmills carrying HM90 ADKT-1505... inserts.

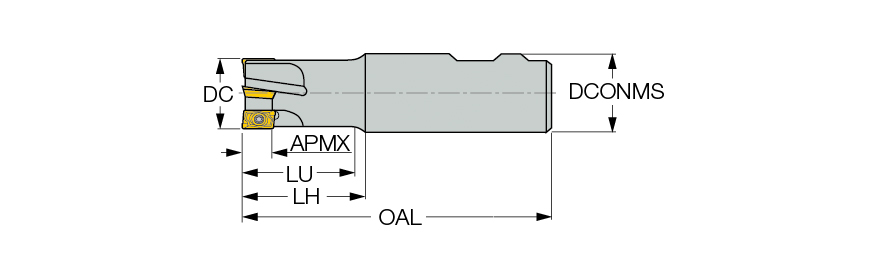

| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 14.3 mm | Usable Length (LU) | 38 mm |
| Overall Length (OAL) | 120 mm | Flute Count (NOF) | 2 |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 5.3 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | ADKT 1505PDTR | Body Material | Steel |

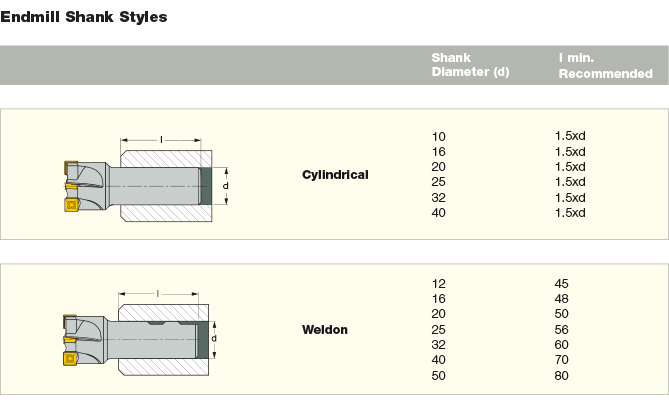

| Weight of Item (WT) | 0.68 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 90° endmills carrying HM90 ADKT-1505... inserts. | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. |
Shipping Info
Package Weight
1.764
