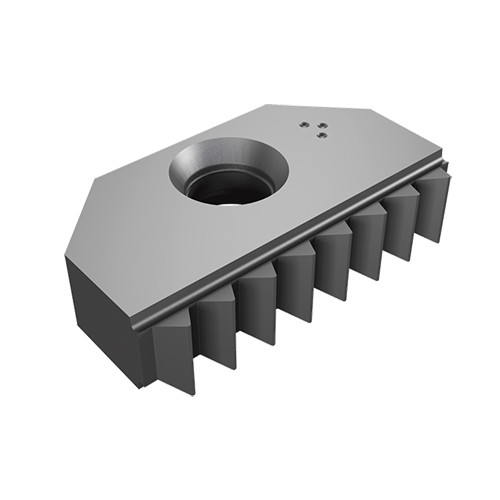

MT LNHU 3005 E20UN 908
External (UN, UNC, UNF, UNEF, UNS) full profile thread milling inserts for general industries.
| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 1.27 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 20 | Coating | TiAlN |

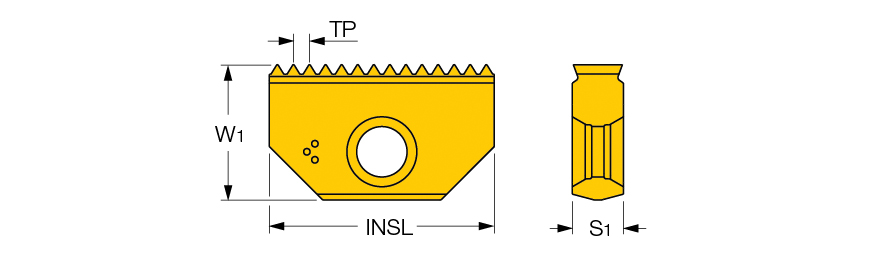

| Insert Length (INSL) | 1.181″ | Measurement Type | Inch |
| Insert Width (W1) | 0.657″ | Body Material | Carbide |
| Insert Thickness Total (S1) | 0.22″ | Thread Form Type (THFT) | UN60 |
| Application | | External Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External (UN, UNC, UNF, UNEF, UNS) full profile thread milling inserts for general industries. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
Shipping Info
Package Weight
0.086
