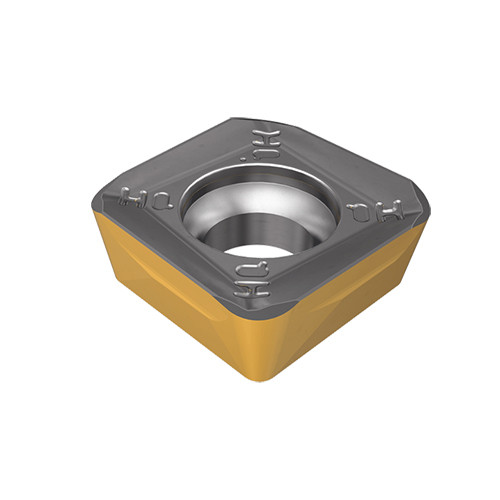

SPMT 100408R-HQ-M IC330
HELIQUAD Square positive inserts for right-hand tools for general use.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |

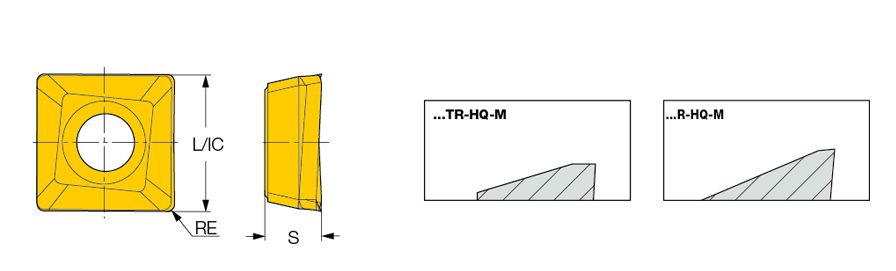

| Insert Length (INSL) | 0.402″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.167″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC330 | Body Material | Carbide |
Product Features
| Family Description | HELIQUAD Square positive inserts for right-hand tools for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.010
