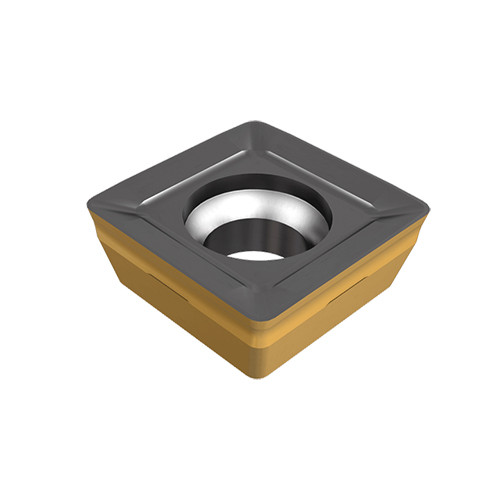

QPMT 100408PDTN-M IC830
Milling Insert; QPMT 100408PDTN-M IC830 IC830 × 0.162″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

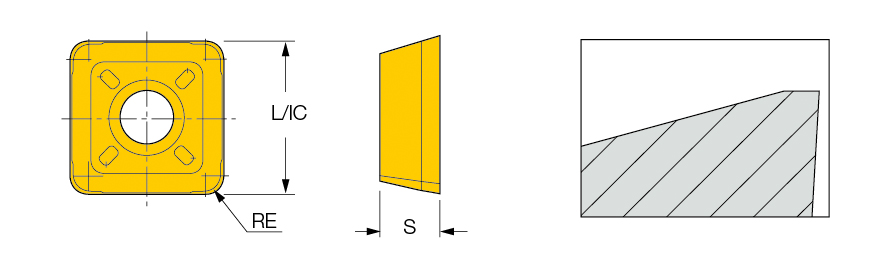

| Insert Length (INSL) | 0.407″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0276″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.162″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Neutral insert with reinforced land for slotting | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.011
