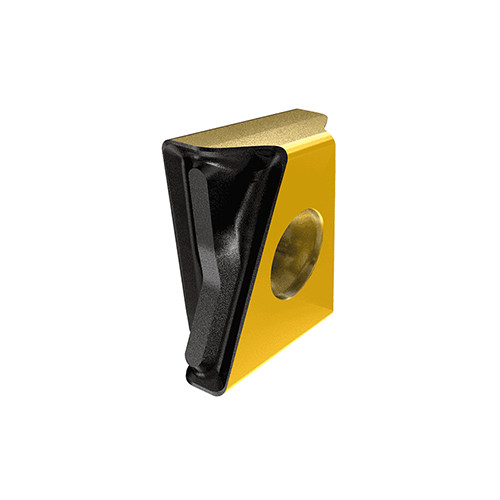

LNMT 1506PNTN-HT IC910
TANGMILL, tangentially clamped inserts featuring 4 straight cutting edges 2 L.H. and 2 R.H.
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Facing | Shouldering | Slotting | | Shape | Rectangle |

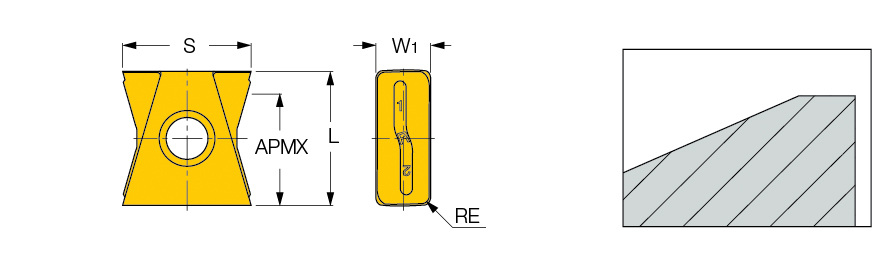

| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.551″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.552″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL, tangentially clamped inserts featuring 4 straight cutting edges 2 L.H. and 2 R.H. | Country of Origin | Israel |
| Remarks | For mismatch as a function of cutting diameter, Click on More Info |
Shipping Info
LocalField10
0
Package Weight
0.027
