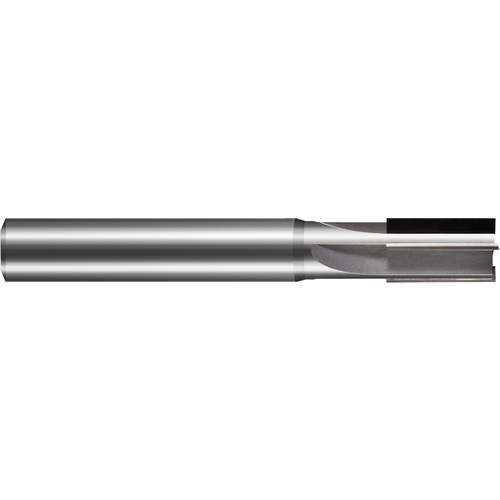

Diamond End Mills for Non-Ferrous Materials - PCD Diamond - 0.3750″ (3/8″) Cutter Diameter × 0.7500″ (3/4″) Length of Cut PCD Square End Mill, 4 Flutes
Square End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 4 FL ; PCD ; CVDDIA
| Cutting Diameter (DC) | 3/8″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ | Usable Length (LU) | 1-7/16″ |
| Overall Length (OAL) | 3″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | PCD | Tool Type | Single-End|Non-Center Cutting |
| Coating | CVDDIA | Decimal Equivalent | 0.375″ |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.173
