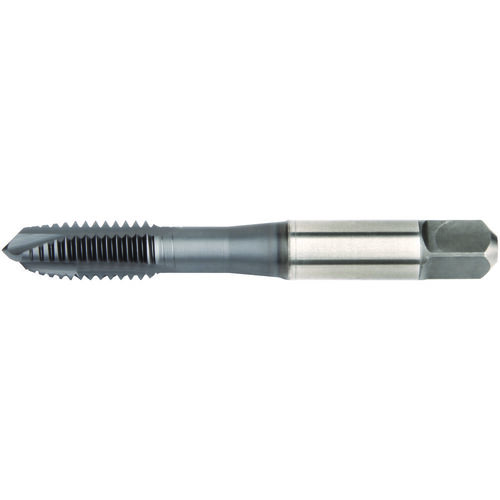

VTSPO5030 10-24 H3 2F PLUG VT-SPO
Additional Tariff Surcharge of 5 %
| Thread Standard | NC | Flute Count (NOF) | 2 |
| Thread Size | #10 - 24 | Cutting Edge Material | HSSCo |
| Thread Diameter Size (TDZ) | #10 | Standard | ANSI |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 1/2″ |
| Overall Length (OAL) | 2.37″ | Style | Plug |
| Chamfer | 3P-5P | Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0132
