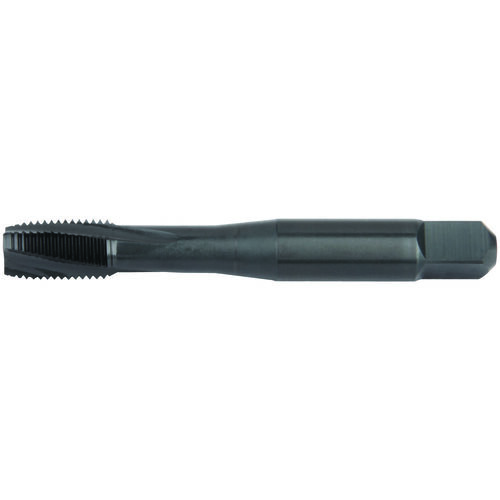

GT945021-5/16-24 H3 3FL RHSF BOTHSS
Additional Tariff Surcharge of 5 %
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Standard | ANSI |
| Thread Standard | NF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 2.72″ | Chamfer | 1P-2P |
| Thread Cutting Part Length (THL) | 0.49″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 11 Degrees|CW | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCo | Measurement Type | Inch |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.042
