ICM 0571 IC908

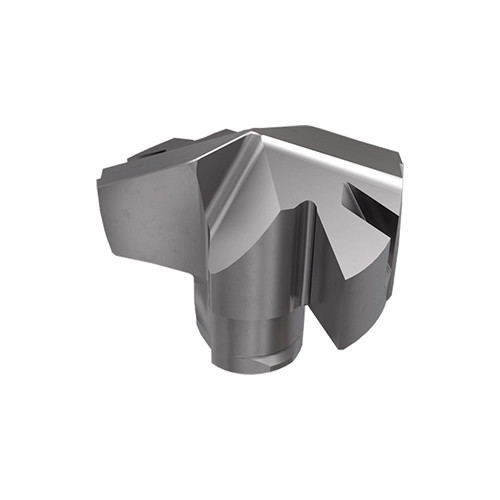

Exchangeable drilling heads for DCN drills, for machining ISO M and ISO S materials. The drill head features a T-land on the cutting edge, available in increments of .004″.

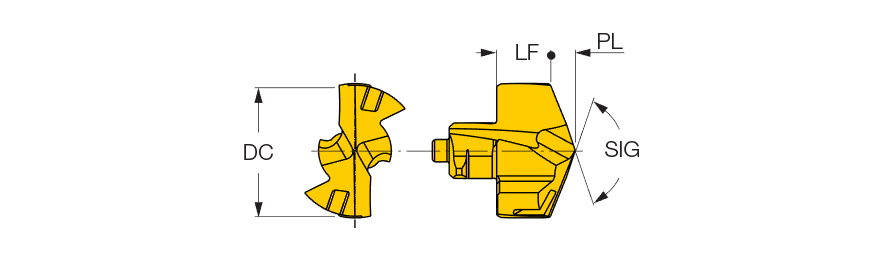

| Cutting Diameter (DC) | 0.571″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Insert Thickness (S) | 0.321″ |
| Grade | IC908 | Point Length (PL) | 0.08661″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 14.0 | Coating | TiAlN |
| Functional Length (LF) | 0.234″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO M and ISO S materials. The drill head features a T-land on the cutting edge, available in increments of .004″. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
3.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
0.01
