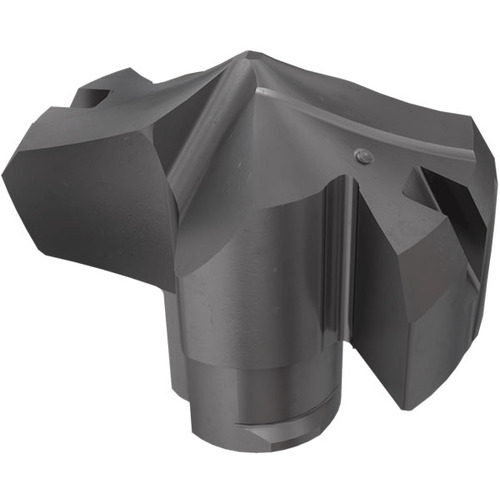

HCP 0524-IQ IC908
Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials.
| Cutting Diameter (DC) | 0.524″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.299″ |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 0.13818″ |
| Grade | IC908 | Point Angle (SIG) | 134 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 13.0 | Corner Chamfer Width (CHW) | 0.024″ |
| Functional Length (LF) | 0.161″ | Chamfer Angle | 30 Degrees |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials. | Country of Origin | Israel |
| Remarks | Advance Self-Centering and high surface finish |
Shipping Info
Package Weight
0.025
