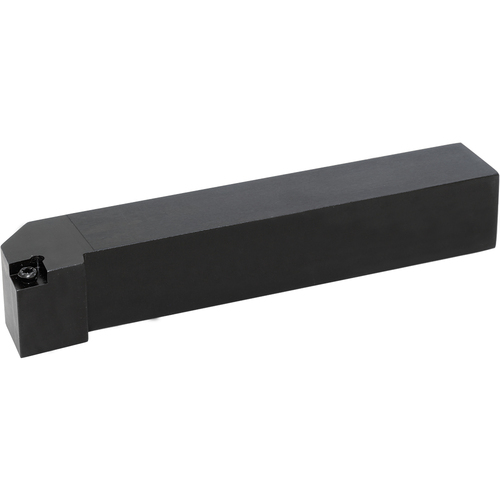

SCLCR 1616H09 INDEX TURN
Alternate Manufacture # SCLCR1616H09
| Shank Height (H) | 16 mm | Master Insert Identification (MIID) | CCGT325… | CCMT325… | CCGW325… | CCMW325… |
| Shank Width (B) | 16 mm | Application | Swiss | External Turning | Facing |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Head Length (LH) | 15 mm | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Series/List # | SCLC |
Product Features
| Family Description | Alternate Manufacture # SCLCR1616H09 | Country of Origin | USA |
Shipping Info
Package Weight
.4708
