SGSF 100-3-22K
| Cutting Diameter (DC) | 100 mm | Cutting Width Minimum (CWN) | 2.7 mm |
| Cutting Item Count (CICT) | 6 | Master Insert Identification (MIID) | GSFN 3 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Application | | Side Slotting | Slitting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 29 mm | Rotational Speed Maximum (RPMX) | 800 Rev/min |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 40 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 2.4 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 3.53 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Slitting cutters carrying SELF-GRIP inserts | Country of Origin | Israel |

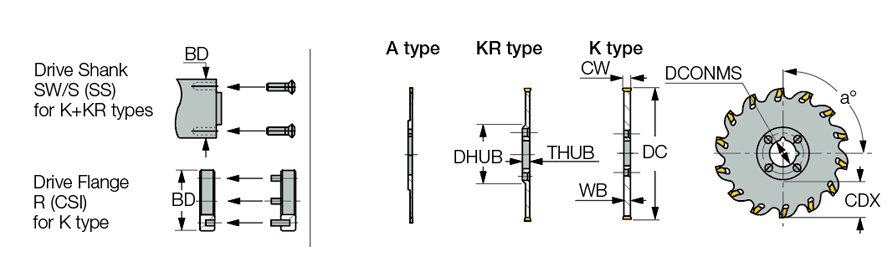

| Remarks | Only the K type cutters feature 4 driving holes around the central hole; can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.395
