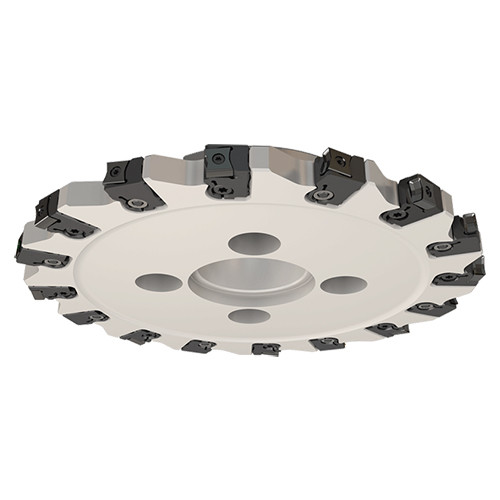

FDN D250-1419-60R-CALN11
Full slot, adjustable slotting cutters with cartridges using LNMT 1106 inserts, 14.0-19.5 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.

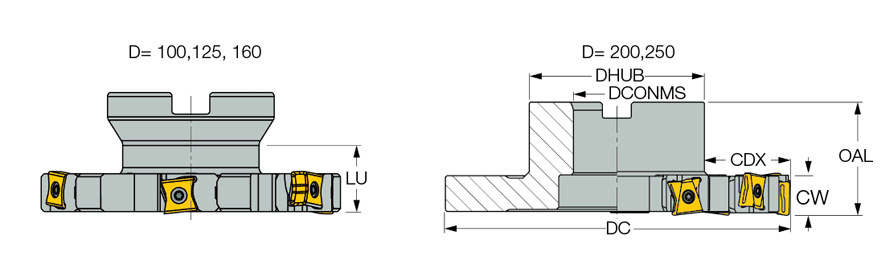

| Cutting Diameter (DC) | 250 mm | Overall Length (OAL) | 50 mm |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | LNKX 1106PN-N MM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | |
| Cutting Depth Maximum (CDX) | 58 mm | Arbor Style | C |
| Hub Diameter (DHUB) | 132 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 19.5 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 14 mm | Body Material | Steel |
| Flute Count (NOF) | 16 |
Product Features
| Family Description | Full slot, adjustable slotting cutters with cartridges using LNMT 1106 inserts, 14.0-19.5 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | Country of Origin | Israel |

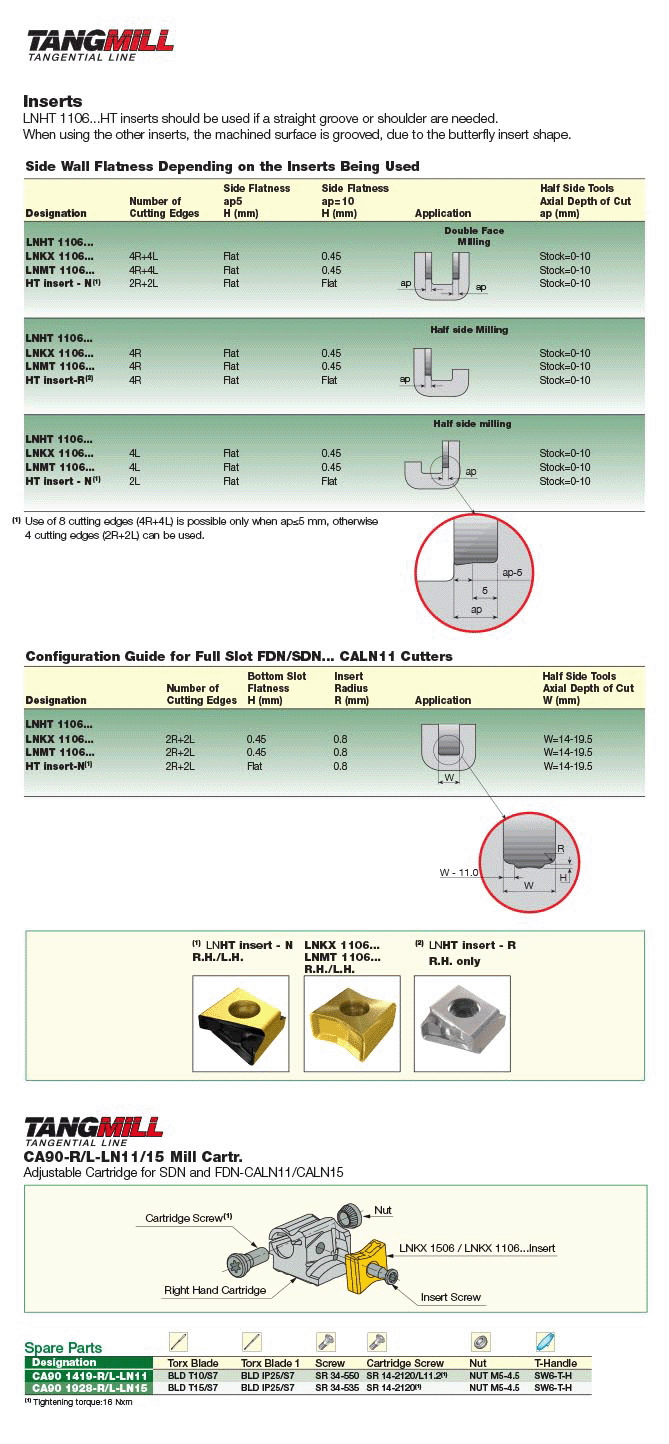

| Remarks | The cutter will be set to the minimum width range, unless a specific width is requested by the user. Half of the inserts are used on right-hand cartridges and half on left-hand cartridges. For adaptation click on More Info. |
Shipping Info
Package Weight
14.683
