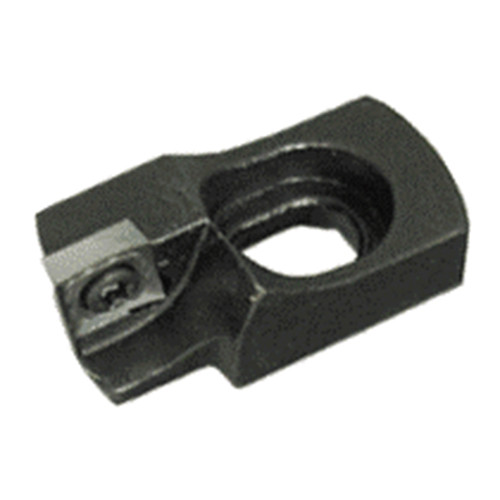

IHRF 25
80° rhombic insert holders for mounting on MB fine boring heads.
| Connection Size (CSI) | 30 | Application | | Int. 80° Diamond 90° Approach | |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1.102″ | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.575″ | Nose Diameter | 3/4″ |
| Shank Size (SS) | MB25 | d_max | 1.575″ |
| Shank Size Machine Side | 3/4″ | Internal/External | Internal |
| Master Insert Identification (MIID) | CCGT 2... | Measurement Type | Inch |
| Body Material | Steel | Grade | 4550335 |
Product Features
| Family Description | 80° rhombic insert holders for mounting on MB fine boring heads. | Country of Origin | Italy |
Shipping Info
LocalField10
0
Package Weight
0.061
