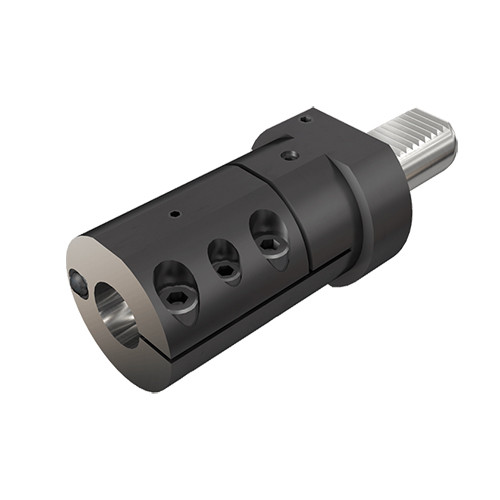

VDI30 AV-D32-JHP
VDI holders for Anti-Vibration tools

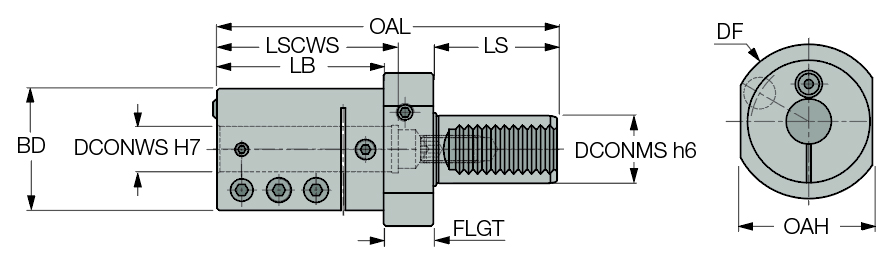

| Connection Diameter Machine Side (DCONMS) | 30 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Shank Length (LS) | 55 mm |
| Clamping Length Workpiece Side (LSCWS) | 128 mm | Flange Diameter (DF) | 68 mm |
| Body Diameter (BD) | 63 mm | Overall Height (OAH) | 56 mm |
| Body Length (LB) | 120 mm | Overall Length (OAL) | 197 mm |
| Measurement Type | Metric |
Product Features
| Family Description | VDI holders for Anti-Vibration tools | Country of Origin | China |
Shipping Info
Package Weight
7.161
