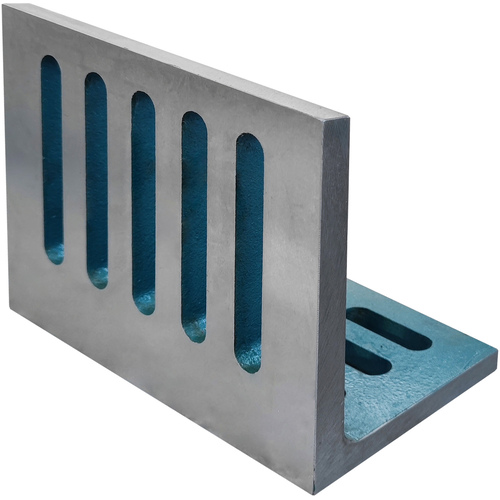

| Type | Machined Webbed (Closed) End Slotted Angle Plate | Tolerance | 0.07″ |
| Length | 9″ | Plate Surface | Machined |
| Width | 7″ | Single/Pair | Single |
| Height | 6″ | Weight | 18 lbs |
| Plate Style | Webbed & Slotted | First Angle B | 7″ |
| Parallelism | 0.002″ per 6″ | Second Angle C | 6″ |
| Squareness | 0.002″ per 6″ |
Product Features
| Remarks | •These Slotted Angle Plates have convenient clamping slots for mounting and are widely used for machining, layout and inspection. •Material: High quality close-grained gray iron, stress-relieved against distortion by heat-treatment. •Available in machine finish only. •Available in two qualities: American Made or Top Quality Import. •Webbed end angle plates have side webs and are machined square and parallel on outside faces and ends. •Open End Angle Plates are accurately machined square and parallel on the faces. •Giant Slotted Angle Plates are machined on outside faces |
