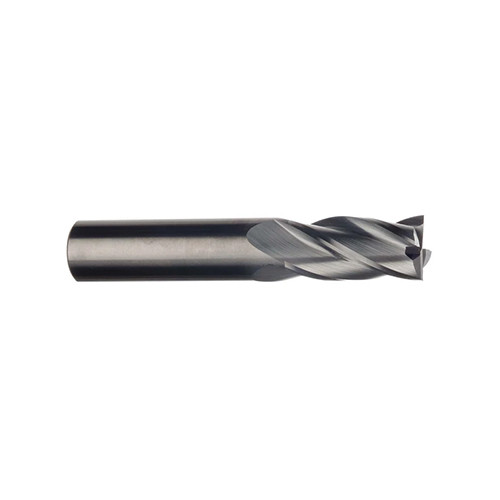

| Cutting Diameter (DC) | 3/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IM100 Uncoated |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Single End |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | E14-SQ |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.132
