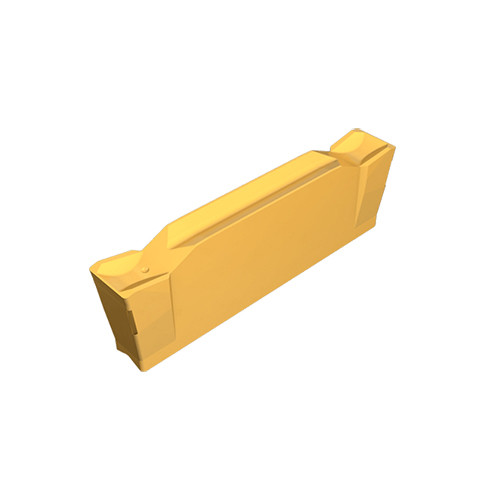

DGNM 3202C IC354
Used for parting bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. DGNC - with coolant holes, DGNM - single ended for very deep applications.
| Cutting Width (CW) | 1/8″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0098 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Min. Grooving Feed (fg(min)) | 0.0039 ″/rev |
| Overall Length (OAL) | 0.803″ | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Angle | 12 Degrees |
| Grade | IC354 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
Product Features
| Family Description | Used for parting bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. DGNC - with coolant holes, DGNM - single ended for very deep applications. | Country of Origin | Israel |
| Remarks | The feed values for grade IC20 should be decreased by 50%. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.008
Related Documentation

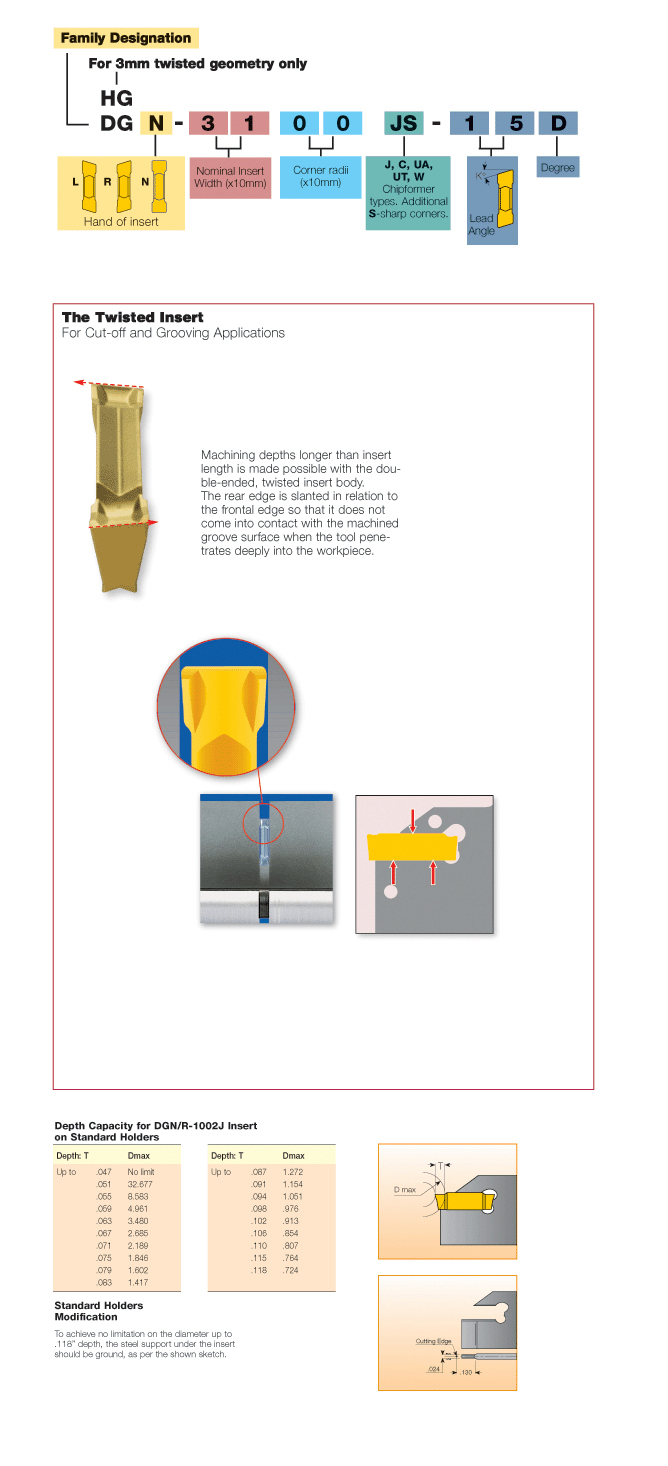

Tolerances: Insert||||||||||||W (in mm) DGN 2.0-3.0|||||||+/-0.03 DGN 4.0-6.0|||||||+/-0.04 Tolerances: Insert||||||||||||W (in Inch) DGN .079-.118|||||+/-.00118 DGN .122-.250|||||+/-.00157
