GIQR 8-0.50-0.00 IC528

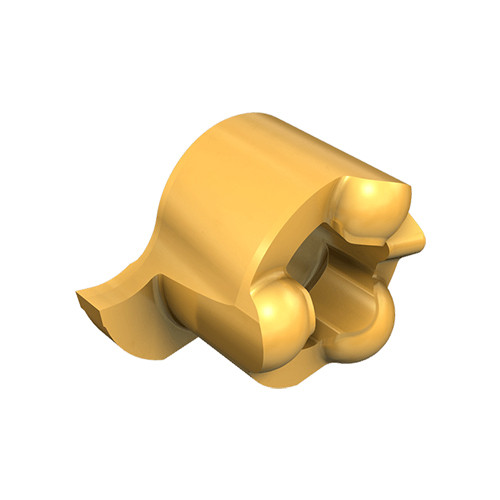

CHAMGROOVE precision ground single-ended inserts for internal grooving and turning

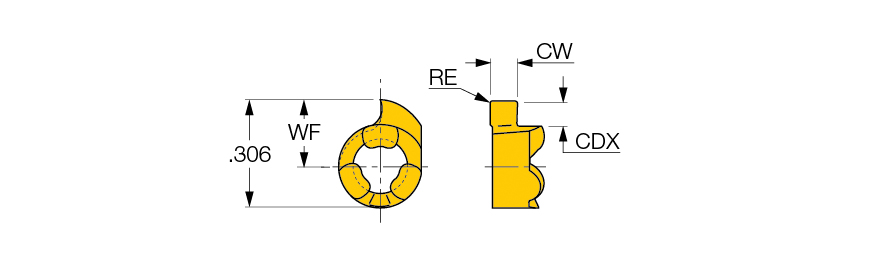

| Cutting Width (CW) | 0.02″ | Application | | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.028″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 0.315″ | Measurement Type | Inch |
| Feed | 0.0012 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC528 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | CHAMGROOVE precision ground single-ended inserts for internal grooving and turning | Country of Origin | Israel |
| Remarks | According to retaining rings standard DIN 471/472. Can be used for groove milling by circular interpolation |
Shipping Info
LocalField10
0
Package Weight
0.005
