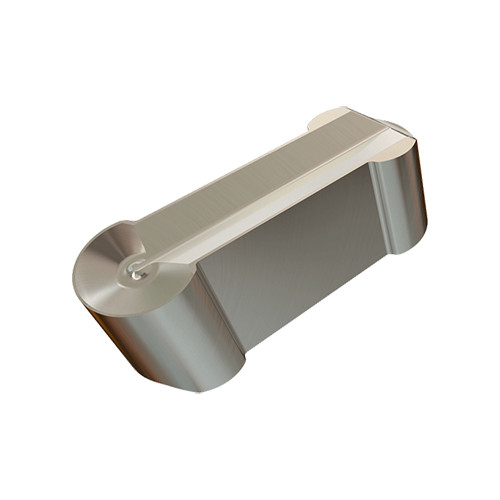

GIPA 4.00-2.00 IC20
Precision-ground double-ended inserts, polished to avoid built-up edge, used for external machining of aluminum at medium-to-high feeds.

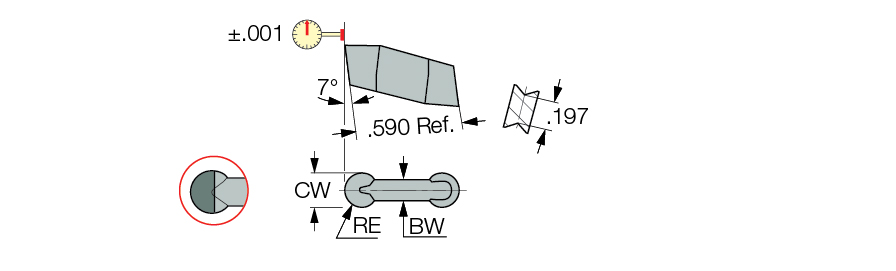

| Cutting Width (CW) | 0.157″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.079″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.512″ | Chip Breaker Type | A |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Position | External |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Insert Length (INSL) | 0.591″ | Measurement Type | Inch |
| Feed | 0.0169 inch/rev | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Coating | Uncoated | Threads per Inch (TPI) | 8 |
| Grade | IC20 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Profiling | Ext. Turning Aluminum Wheels | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Machining Aluminum Wheels | Int. Profiling | Side Slotting | |
Product Features
| Family Description | Precision-ground double-ended inserts, polished to avoid built-up edge, used for external machining of aluminum at medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
Related Documentation
Precision, double-ended, full radius. Polished to avoid BUE. Excellent for turning and profiling aluminum wheels and soft materials at medium to high feeds.
