15N1E-0201584R01

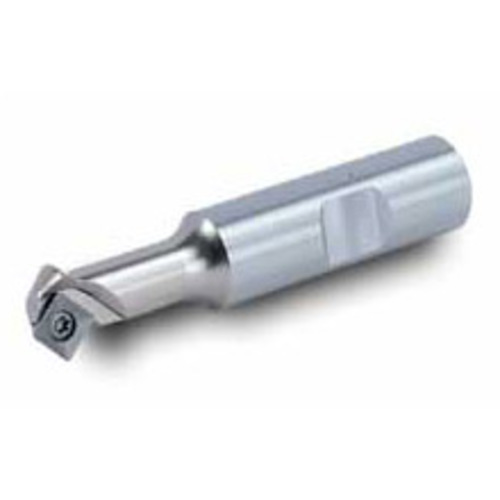

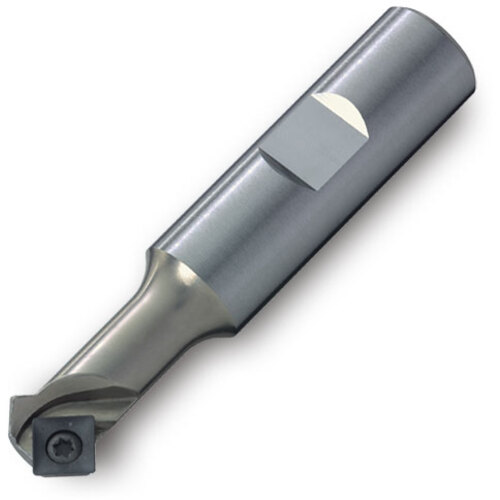

Indexable End Mill; 0.655″ Dia. × 0.2″ LOC × 3/4″ Shank Dia. × 3-1/2″ OAL × 1.3″ LU ; 45 Degrees
| Cutting Diameter (DC/DCX) | 0.655″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 1 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.2″ | Angle | 90 Degrees |
| Overall Length (OAL) | 3-1/2″ | Measurement Type | Inch |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Protruding Length (LPR) | 1-1/2″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1.3″ | Cutting Diameter Maximum (DCX) | 0.655″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.291
