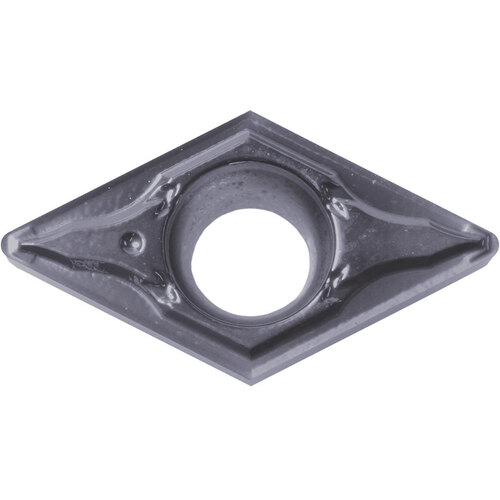

DCGT 21505 MFP-GF PR1225, 0.0079″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/4″ IC × 0.0079″ Corner Radius ; PR1225 ; Carbide ; MEGACOAT
| Applicable Material | | Steel | | Grade | PR1225 |
| Application | External Turning | Copying | Back Boring | Sub-Spindle | Fixing Hole Diameter (D1) | 0.1102″ |
| Insert Style | DCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.0079″ | Number of Cutting Edges | 2 |
| Insert Size | 21505 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | MFP-GF |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | PR12-Series |
| Coating | MEGACOAT |
Product Features
| Family Description | Alternate Manufacture # DCGT21505MFPGFPR1225 | Country of Origin | USA |
Shipping Info
Package Weight
.0600
