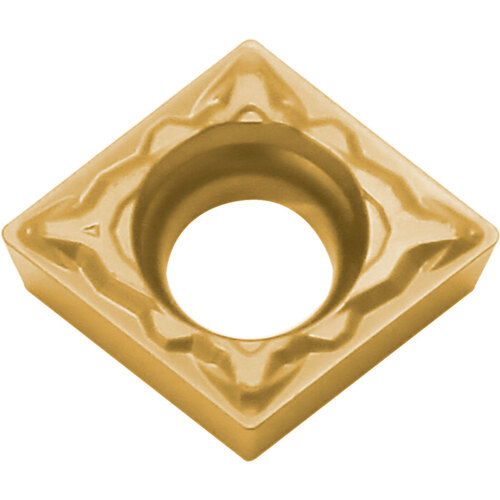

CCMT 3251 PP PV720, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT NANO), Diamond, Turning Indexable Insert
Alternate Manufacture # CCMT3251PPPV720

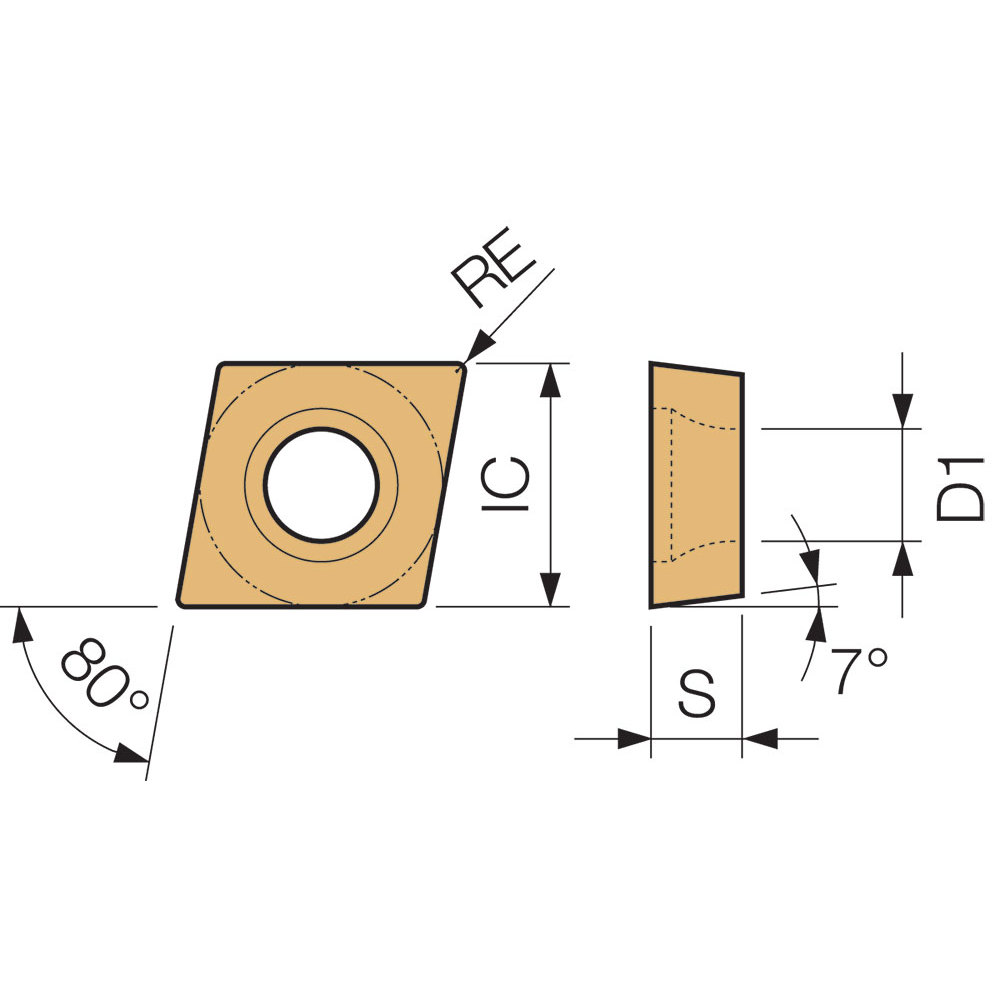

| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Facing | Boring | Internal Facing | Grade | PV720 |
| Insert Style | CCMT | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 3251 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | PP |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # CCMT3251PPPV720 | Country of Origin | USA |
Shipping Info
Package Weight
.0661
