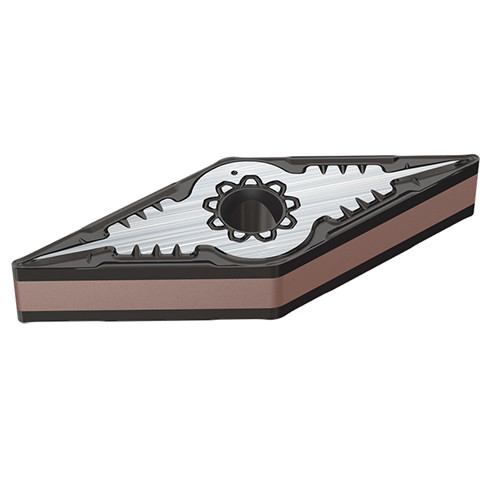

VNMG 331-F3M IC6025
Turning Insert; 35 Rhombic ; 0.654″ Length × 3/8″ IC × 0.0157″ Corner Radius ; IC6025 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Stainless Steel | | Min D.O.C. | 0.004″ |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Style | VNMG | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 331 | Clearance Angle Major (AN) | 0 Degrees |

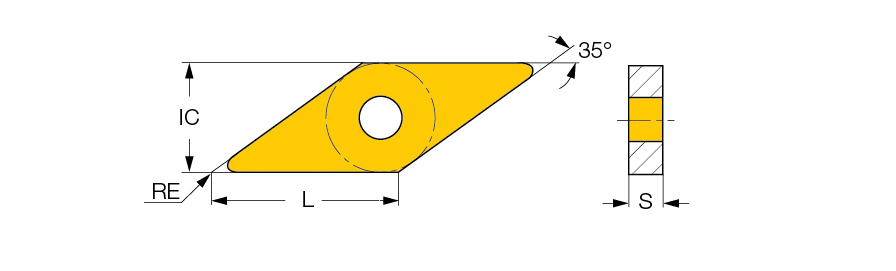

| Cutting Edge Length (L) | 0.654″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | F3M |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 35° Rhombic |
| Grade | IC6025 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.15″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided 35° rhombic insert for semi-finishing and finishing on stainless steel. Low cutting forces due to very sharp edge and positive rake. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.027
