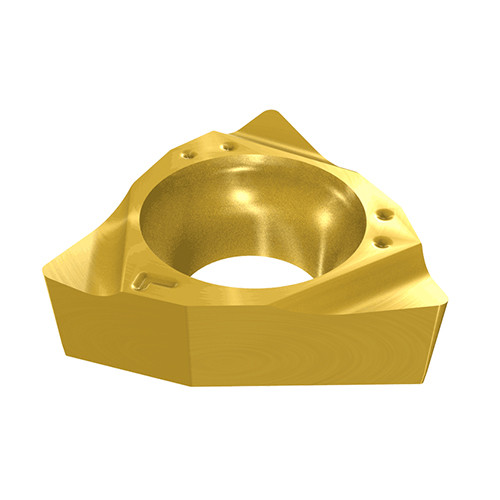

WBMT 520L IC830
Trigon inserts with a 5° positive flank ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.079″ |
| Application | | Int. 80° Trigon 93° Approach | | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Style | WBMT | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |

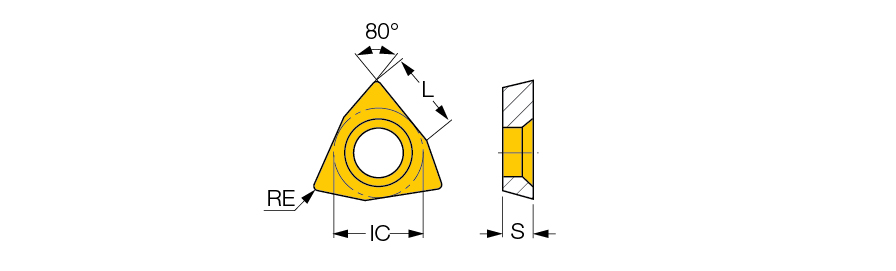

| Corner Radius (RE) | 0.008″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 060 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.086″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.063″ | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 0.156″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | AlTiN+TiN | Series/List # | ISOI |
| Grade | IC830 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
| Min D.O.C. | 0.016″ |
Product Features
| Family Description | Trigon inserts with a 5° positive flank ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. | Country of Origin | Israel |
| Remarks | WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools. For dimensions and tolerances, Click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.003
