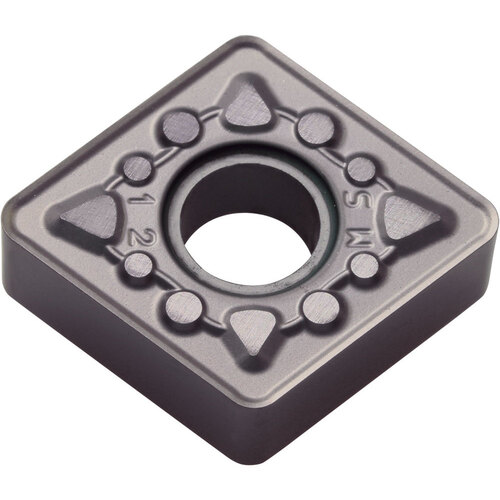

CNMG 432 MS PR1535, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, MEGACOAT NANO, Diamond, Turning Indexable Insert
Alternate Manufacture # CNMG432MSPR1535
| Applicable Material | | Super-Alloys / Titanium | | Grade | PR1535 |
| Application | External Turning | Facing | Boring | Internal Facing | Fixing Hole Diameter (D1) | 0.2031″ |

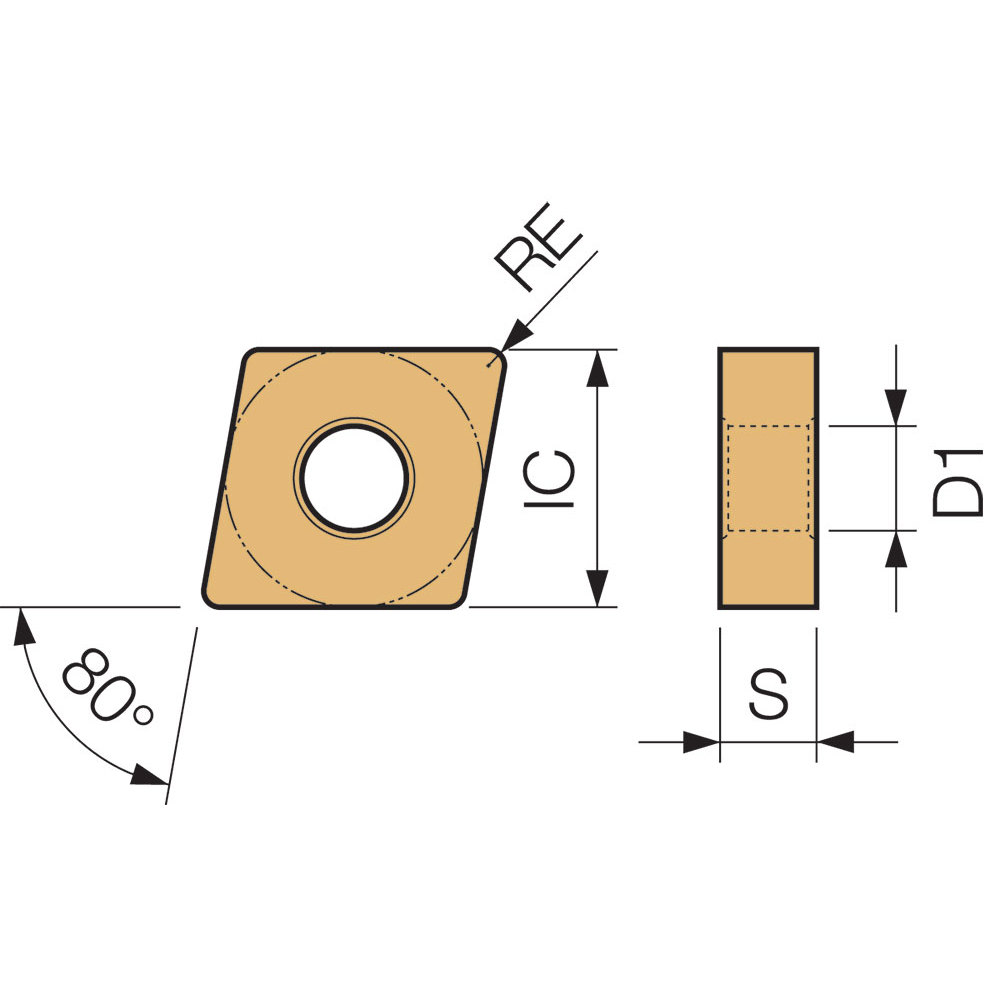

| Insert Style | CNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 4 |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MS |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | PR15-Series |
| Coating | MEGACOAT NANO |
Product Features
| Family Description | Alternate Manufacture # CNMG432MSPR1535 | Country of Origin | Japan |
Shipping Info
LocalField10
0
Package Weight
0.246
Related Documentation
