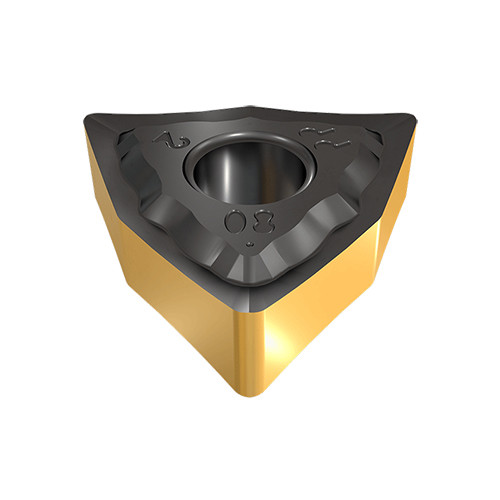

WNMG 431-PP IC10
Double-sided trigon inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys.
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.138″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min. Turning Feed (ft(min)) | 0.0055 ″/rev |
| Insert Style | WNMG | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |

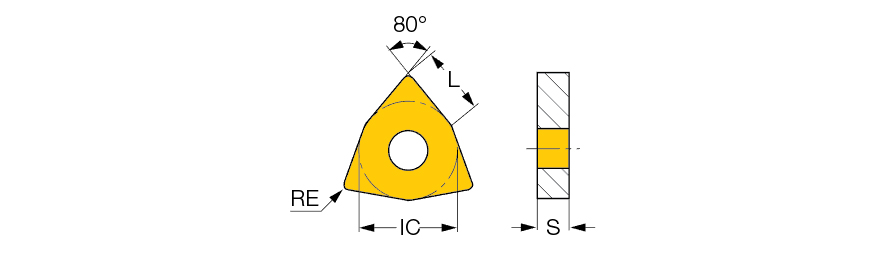

| Corner Radius (RE) | 0.0157″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 080 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.343″ | Chip Breaker Type | PP |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Grade | IC10 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
| Min D.O.C. | 0.039″ |
Product Features
| Family Description | Double-sided trigon inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
