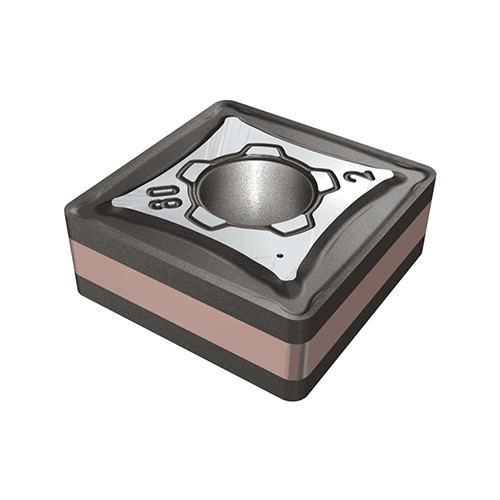

SNMG 432-M3M IC6025
Double-sided, square inserts with a strong cutting edge, positive chipformer, free chip flow for semi-roughing and roughing applications.
| Applicable Material | | Stainless Steel | | Min D.O.C. | 0.02″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Style | SNMG | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |

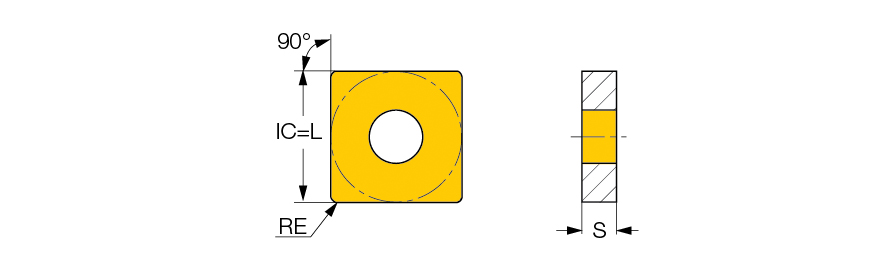

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Size | 120 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC6025 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided, square inserts with a strong cutting edge, positive chipformer, free chip flow for semi-roughing and roughing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.022
