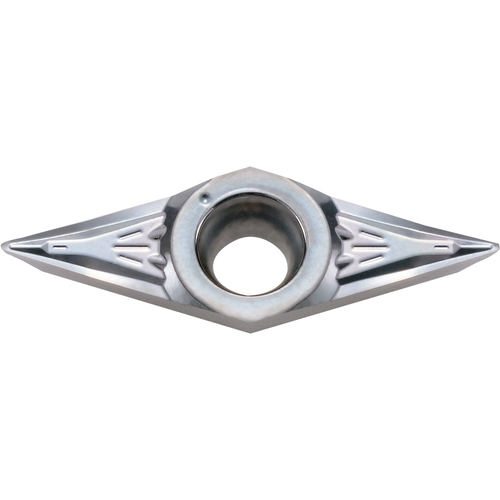

VCGT 2205 SKS PR1725, 0.008″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, MEGACOAT NANO PLUS, 35 Degree Diamond, Turning Indexable Insert
Turning Insert; 35 Diamond × 1/4″ IC × 0.008″ Corner Radius ; PR1725 ; Carbide ; MEGACOAT NANO PLUS

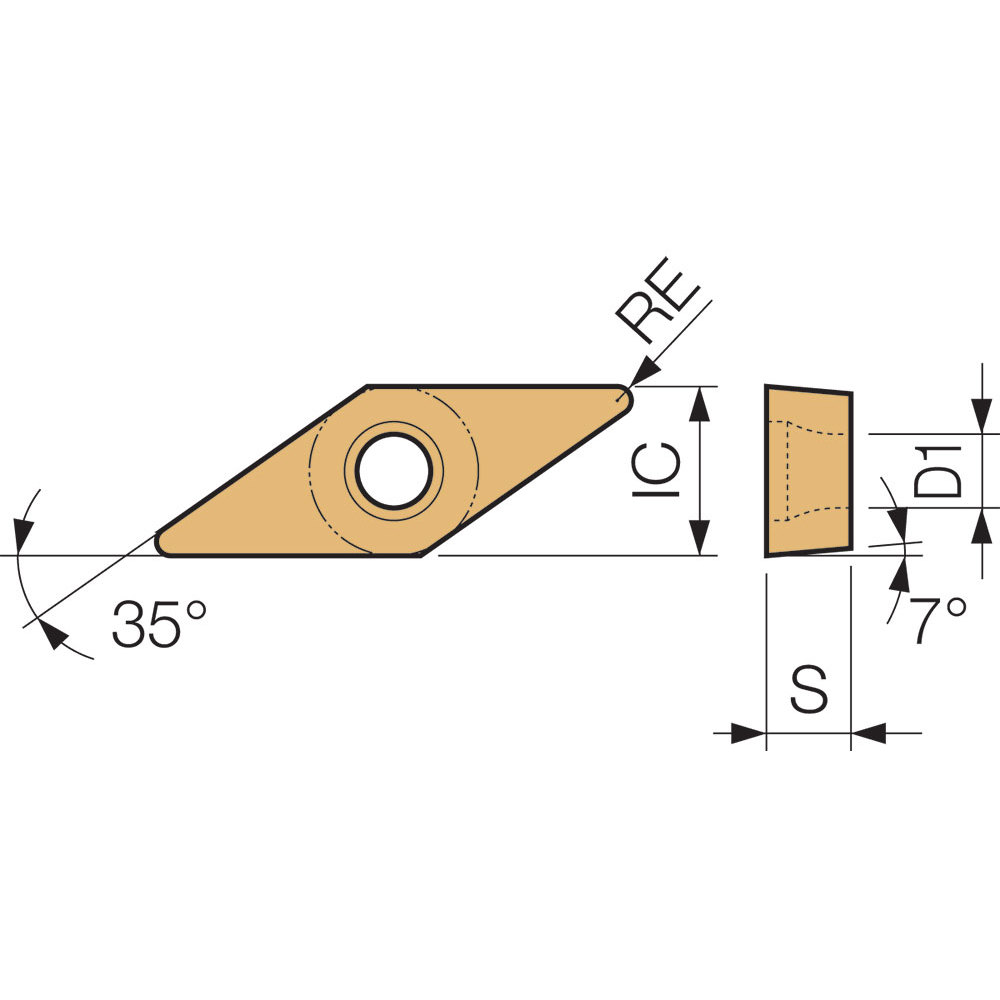

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1102″ |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting | Tool Type | Turning Insert |
| Insert Style | VCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 2 |
| Insert Size | 2205 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | SKS |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 35 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | MEGACOAT NANO PLUS | Series/List # | ISOI |
| Grade | PR1725 | Model No | 8865288 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.087
