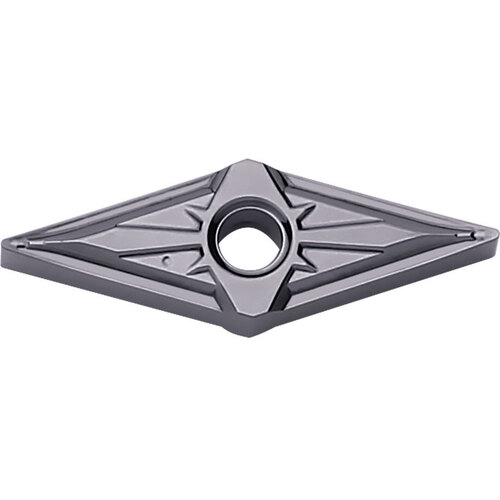

VNGG 331 SK PR1725, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, MEGACOAT NANO PLUS, 35 Degree Diamond, Turning Indexable Insert
Turning Insert; 35 Diamond × 3/8″ IC × 1/64″ Corner Radius ; PR1725 ; Carbide ; MEGACOAT NANO PLUS

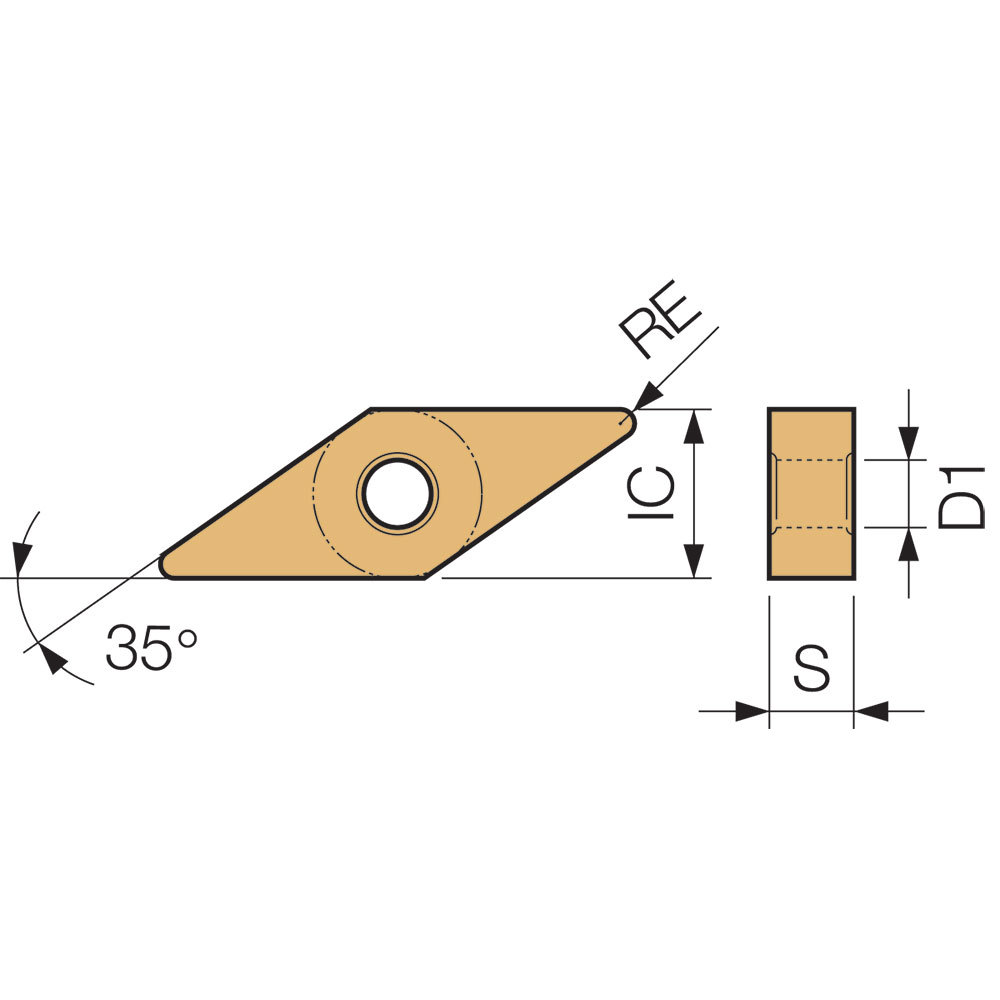

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.15″ |
| Application | Copying | External Turning | Facing | Undercutting | Tool Type | Turning Insert |
| Insert Style | VNGG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | SK |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 35 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | MEGACOAT NANO PLUS | Series/List # | ISOI |
| Grade | PR1725 | Model No | 8863628 |
Product Features
| Country of Origin | USA |
