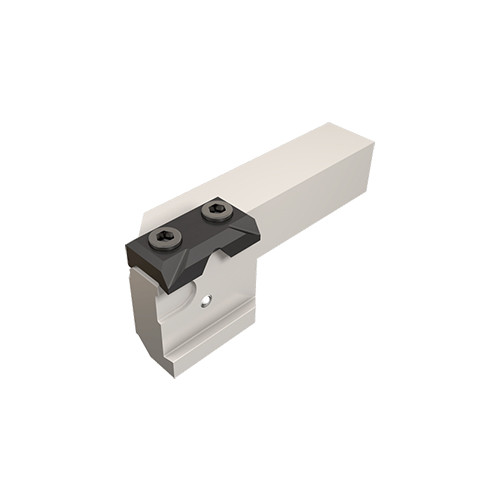

UBHCR 25-32
Holders for grooving, turning and parting blades.

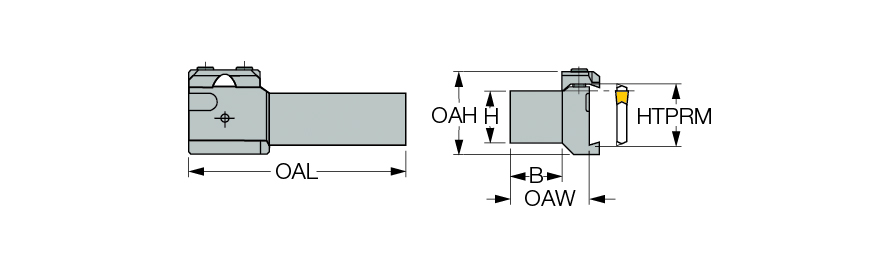

| Shank Height (H) | 25 mm | Shank Standard | Square |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Overall Length (OAL) | 130 mm | Tool Type | Blocks for blades |
| Overall Height (OAH) | 46 mm | Cutting Direction (HAND) | Right Hand |
| Prism Height (HTPRM) | 32 mm | Measurement Type | Metric |
| Cutting Position | External | Tool Assembly Length (LTA) | 27.5 mm |
Product Features
| Family Description | Holders for grooving, turning and parting blades. | Country of Origin | Israel |
| Remarks | Choose blade by HTPRM dimension |
Shipping Info
Package Weight
1.958
