DGFH 32-4-JHP
Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.

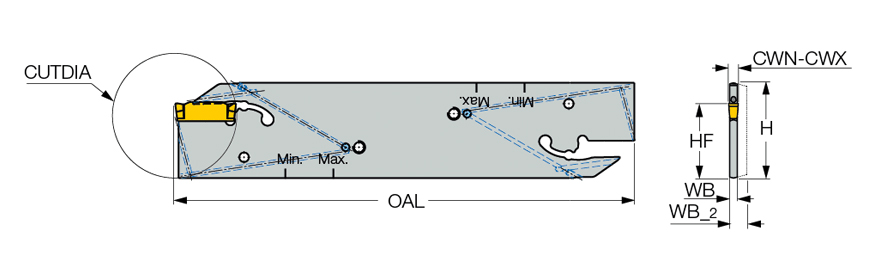

| Shank Height (H) | 1.26″ | Number of Pocket (NOP) | 2 |
| Body Width (WB) | 0.126″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.157″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.157″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 5.984″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.543″ |
| Functional Length (LF) | 5.984″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.165″ |
Product Features
| Family Description | Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
6.25000
Package Width
1.50000
Package Height
.50000
Package Weight
0.299
