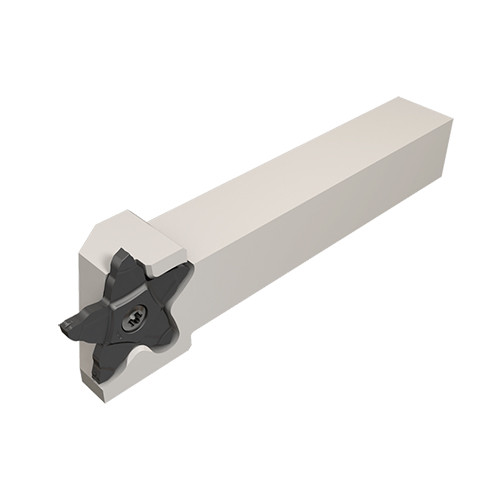

PCHL 32-34
Parting Off Holder; 135 mm OAL × 1.5 mm CW Min. × 4 mm CW Max. × 10 mm Max Depth ; Steel
| Shank Height (H) | 32 mm | Application | | Ext. Grooving | Face Grooving | Parting | |
| Shank Width (B) | 32 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 1.5 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 135 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 31 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 10 mm | Tool Assembly Length (LTA) | 41 mm |
| Cutting Position | External |
Product Features
| Family Description | PENTACUT holders carrying 5 cutting edged inserts, for grooving, parting and recessing. | Country of Origin | Israel |
Shipping Info
Package Weight
2.216
