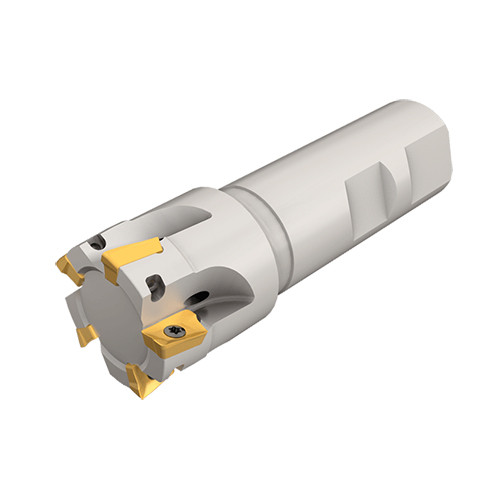

HM90 E90A-D1.25-3-W1.25XL
Indexable End Mill; 1-1/4″ Dia. × 0.39″ LOC × 1-1/4″ Shank Dia. × 6.3″ OAL × 3.96″ LU ; 3 FL ; Weldon Shank ; 90 Degrees

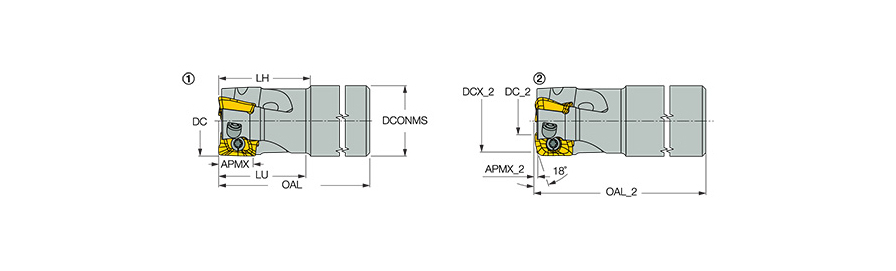

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 4″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 5.159″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.39″ | Usable Length (LU) | 3.96″ |
| Overall Length (OAL) | 6.3″ | Flute Count (NOF) | 3 |

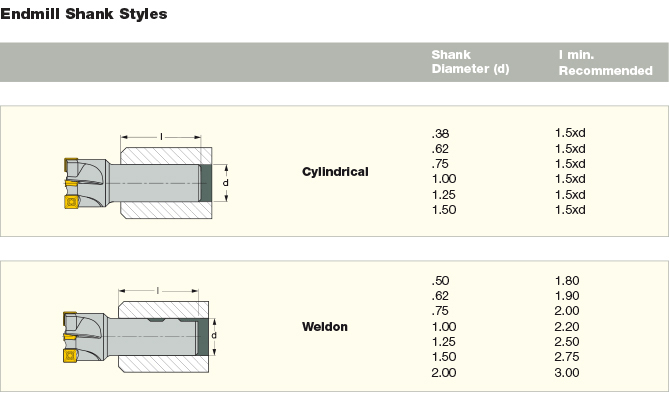

| Shank Type | Weldon | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Body Material | Steel |
| Weight of Item (WT) | 1.9 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Endmills carrying HM90 AP.. 1003... inserts. | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.061
