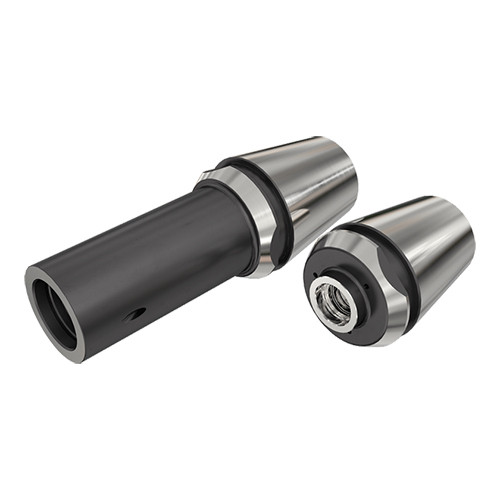

MM S-A-H050-ER32-T08-H
Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes

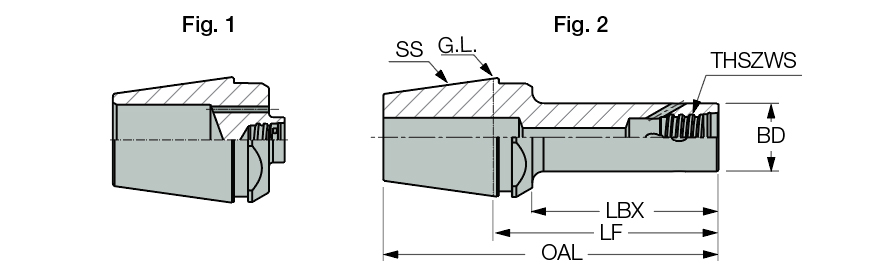

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Tool Type | Spring Collets |
| Material | Carbide | Body Diameter (BD) | 0.457″ |
| Overall Length (OAL) | 3.543″ | Functional Length (LF) | 2.366″ |
| Shank Size (SS) | ER32 | Weight of Item (WT) | 0.5 Lbs |
| Body Length Maximum (LBX) | 1.97″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Steel |
Product Features
| Family Description | Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the threaded connection. For adaptation click on More Info. |
