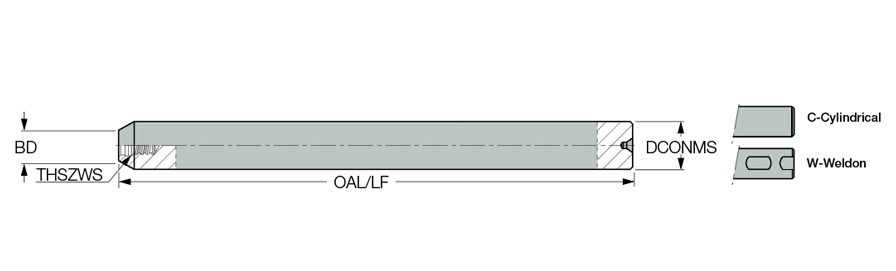

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Functional Length (LF) | 1.627″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Weight of Item (WT) | 0.12 Lbs |
| Material | Carbide | Measurement Type | Inch |
| Overall Length (OAL) | 2.58″ | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Coolant Supply Property (CSP) | External | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Weldon |
| Body Diameter (BD) | 0.36″ |
Product Features

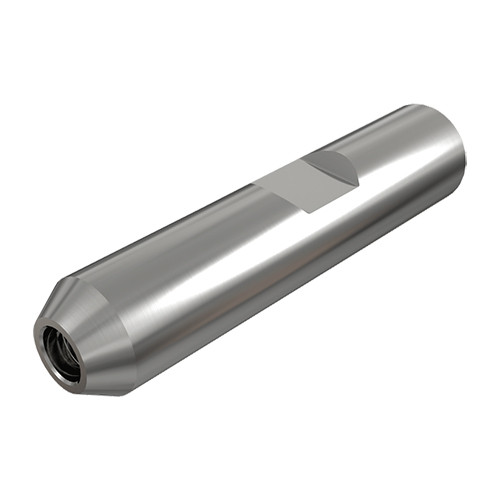

| Family Description | MULTI-MASTER shanks for interchangeable milling heads. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.121
Related Documentation
