DCN 0669-335-075A-5D

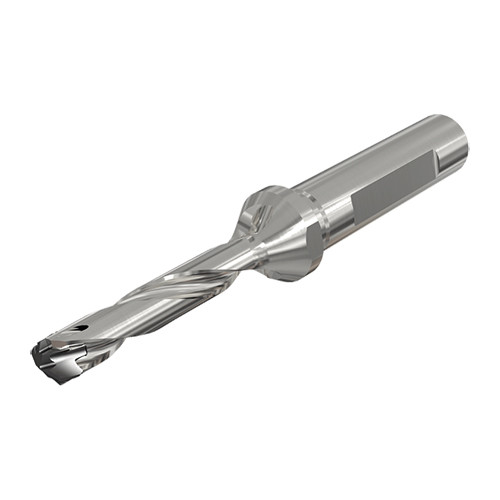

Drill; 0.669″ Dia. × 0.669″ Min. Dia. × 0.708″ Max. Dia. × 3/4″ Shank Dia. × 6.38″ OAL × 3.448″ LU × 1.97″ Shank Length ; Weldon Shank ; Series STAW

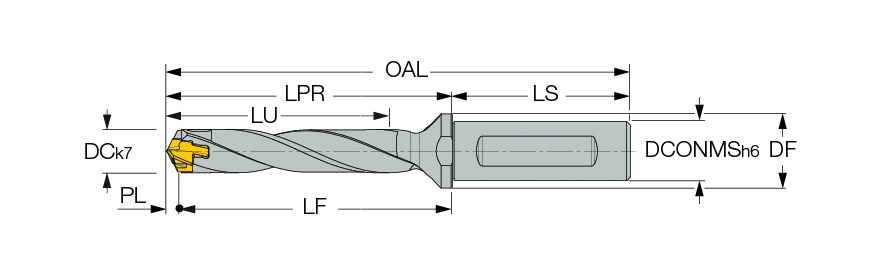

| Cutting Diameter (DC) | 0.669″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.448″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 170 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.102″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 17.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.669″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.708″ | Flange Diameter (DF) | 0.98″ |
| Protruding Length (LPR) | 4.41″ | Decimal Equivalent | 0.669″ |
| Functional Length (LF) | 4.288″ | Body Diameter Reduced (BDRED) | 0.98″ |
| Overall Length (OAL) | 6.38″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 1.97″ |
Product Features
| Family Description | SUMOCHAM 5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
