DCN 0630-095-075A-1.5D

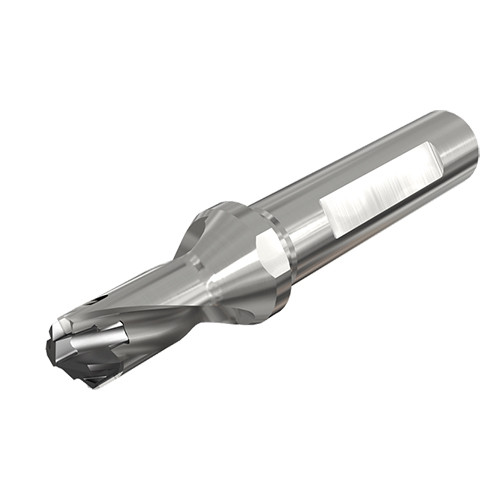

SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

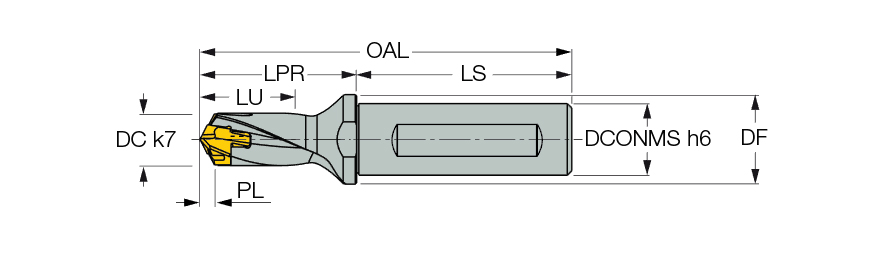

| Cutting Diameter (DC) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.04″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 160 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.095″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 16.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.63″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.668″ | Flange Diameter (DF) | 0.98″ |
| Protruding Length (LPR) | 1.94″ | Decimal Equivalent | 0.63″ |
| Functional Length (LF) | 1.825″ | Body Diameter Reduced (BDRED) | 0.98″ |
| Overall Length (OAL) | 3.91″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 1.97″ |
Product Features
| Family Description | SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
0.324
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
