DCN 0335-268-050A-8D

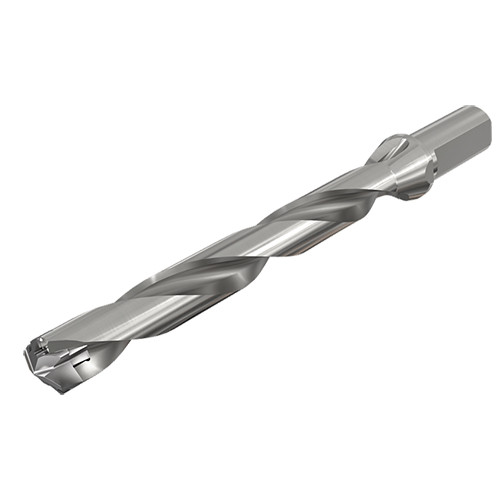

SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

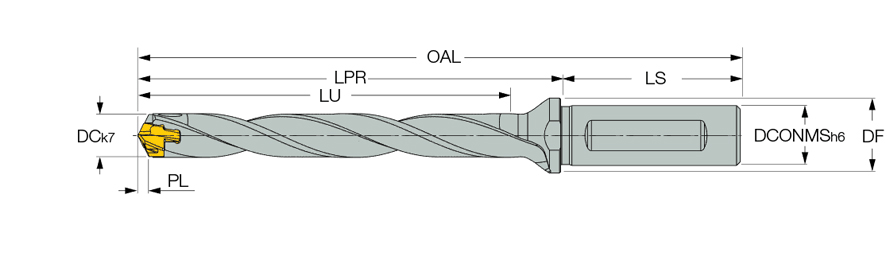

| Cutting Diameter (DC) | 0.335″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.728″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 085 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.051″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 8.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.335″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.353″ | Flange Diameter (DF) | 0.63″ |
| Protruding Length (LPR) | 3.28″ | Decimal Equivalent | 0.335″ |
| Functional Length (LF) | 3.219″ | Body Diameter Reduced (BDRED) | 0.63″ |
| Overall Length (OAL) | 5.05″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 1.77″ |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
0.209
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
