DCN 0315-252-050R-8D

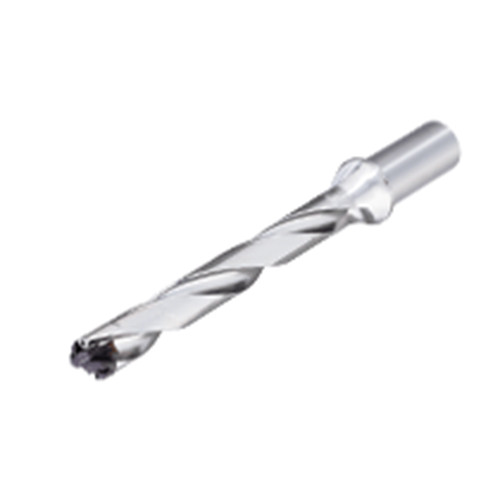

Drill; 0.315″ Dia. × 0.315″ Min. Dia. × 0.334″ Max. Dia. × 1/2″ Shank Dia. × 4.9″ OAL × 2.567″ LU × 1.77″ Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 0.315″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.567″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 080 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.047″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 8.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.315″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.334″ | Flange Diameter (DF) | 0.63″ |
| Protruding Length (LPR) | 3.13″ | Decimal Equivalent | 0.315″ |
| Functional Length (LF) | 3.073″ | Body Diameter Reduced (BDRED) | 0.63″ |
| Overall Length (OAL) | 4.9″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.77″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.211
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
