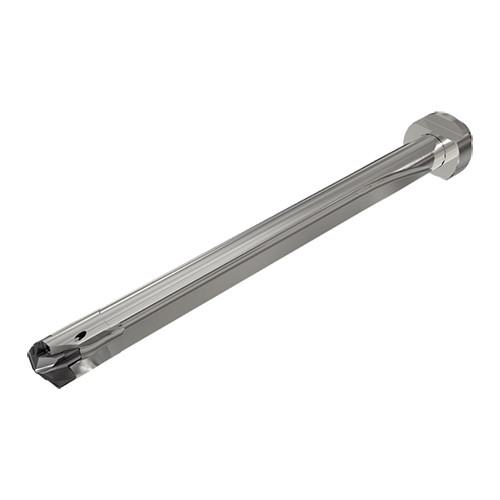

MNSNT 0787-1574-MF20X1
Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types.
| Cutting Diameter (DC) | 0.787″ | Measurement Type | Inch |
| Usable Length (LU) | 15.748″ | Master Insert Identification (MIID) | HCP 200 |
| Application | | Drilling | Gundrills | | Point Length (PL) | 0.18937″ |
| Tool Type | Indexable Insert Drills | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 20.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.787″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.826″ | Decimal Equivalent | 0.787″ |
| Protruding Length (LPR) | 19.173″ | Connection Thread Nominal Size Machine Side (THSZMS) | MF20X1 |
| Coolant Supply Property (CSP) | Coolant Thru | Drive Size (DRVS) | 0.866″ |
| Cutting Item Count (CICT) | 1 |
Product Features
| Family Description | Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.793
