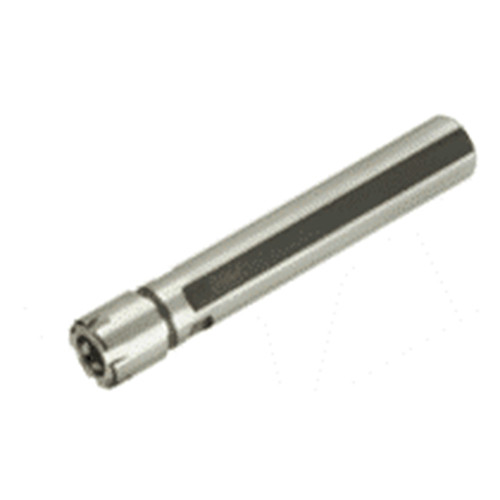

ST5/8X1.250 ER16 MF
DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes.

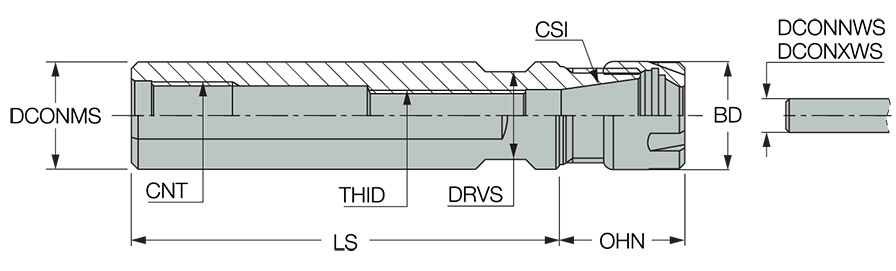

| Shank Size (SS) | .625 | Style | ER16 |
| Connection Size (CSI) | ER16 | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 0.866″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Protruding Length (LPR) | 1.378″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.396″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Shank Length (LS) | 1-1/4″ | Drive Size (DRVS) | 0.669″ |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
3.30000
Package Width
1.20000
Package Height
1.20000
Package Weight
0.2
