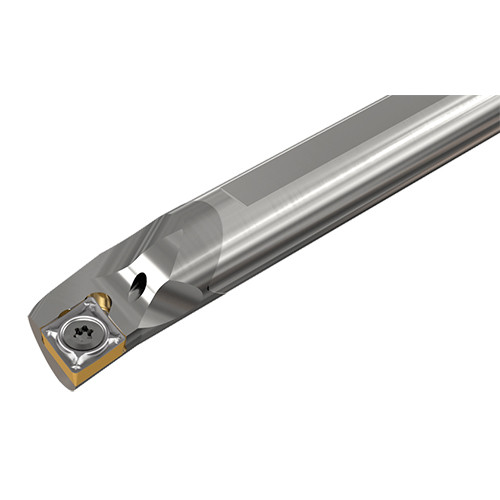

S08K SCLCR-06
Int. Turning Tool ; 125 mm OAL ; 8 mm Shank Height ; 8 mm Shank Dia. ; 10.5 mm Min Bore Dia. ; Steel

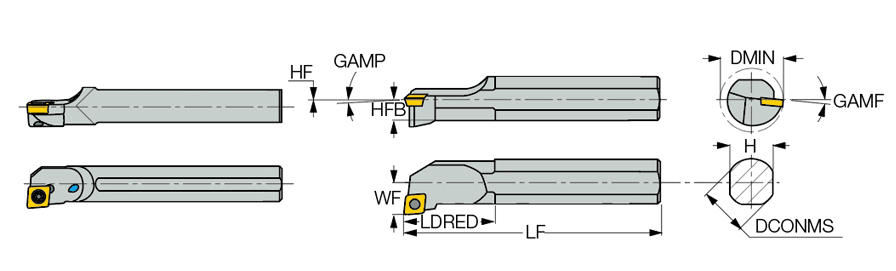

| Connection Diameter Machine Side (DCONMS) | 8 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 125 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 8 mm | Rake Angle Radial (GAMF) | -11 Degrees |
| Functional Width (WF) | 5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT 060204-14 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 10.5 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter. | Country of Origin | Israel |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.156
