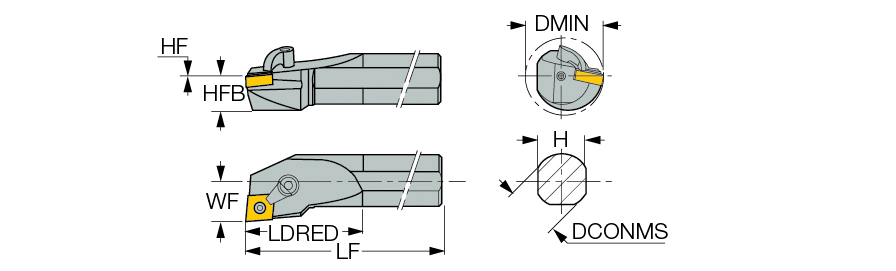

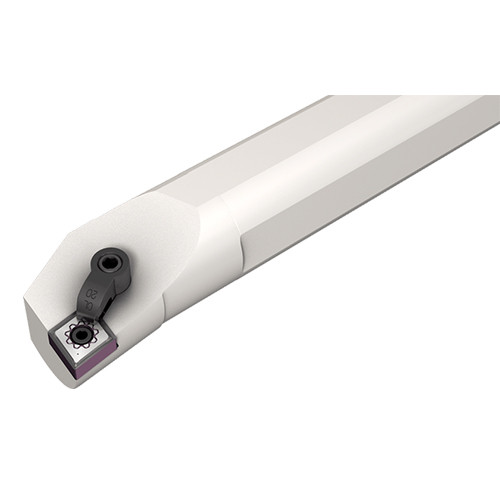

A-MCLNR 20-4
Int. Turning Tool ; 12″ OAL ; 1.142″ Shank Height ; 1-1/4″ Shank Dia. ; 12″ LF ; 1.53″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 12″ | Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 12″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Height (H) | 1.142″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.77″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CN..43.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.53″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Comlock boring bars for negative 80° diamond inserts. | Country of Origin | USA |
Shipping Info
Package Weight
3.273
