E-SCLCR 6-2

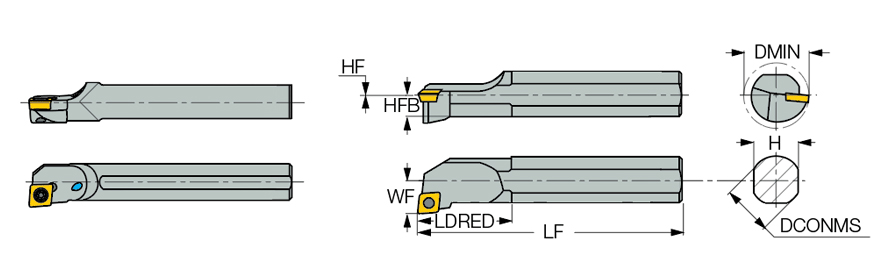

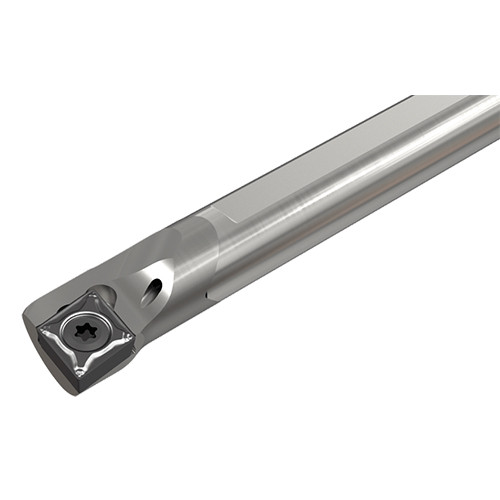

Screw lock boring bars for 80° rhombic inserts with 7° clearance
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 6″ | Application | | Int. 80° Diamond 95° Approach | |
| Shank Height (H) | 0.337″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 1/4″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Minimum Bore Diameter (DMIN) | 0.46″ | Tool Type | Internal Indexble -Turn Tool |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars for 80° rhombic inserts with 7° clearance | Country of Origin | Israel |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
0.304
