GHSL 16-2
External grooving and turning holders for Swiss-type and automatic machines

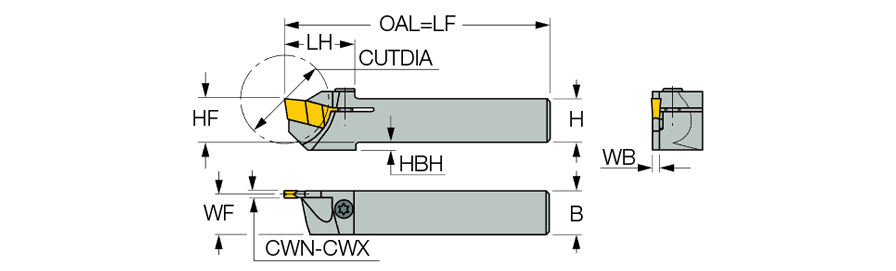

| Cutting Width Minimum (CWN) | 0.087″ | Overall Length (OAL) | 4.724″ |
| Cutting Width Maximum (CWX) | 0.124″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 0.63″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 0.63″ | Body Material | Steel |
| Functional Width (WF) | 0.594″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 1.024″ | Measurement Type | Inch |
Product Features
| Family Description | External grooving and turning holders for Swiss-type and automatic machines | Country of Origin | Israel |
| Remarks | When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
LocalField10
0
Package Weight
0.54
Related Documentation
Wide range of integral shank holders for multi-directional operations. Wide range of inserts applicable. GIM for grooving and parting, GIP-E for turning, GIP for precision grooving and GIP-MT/WT for threading.
