| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 7″ |
| Cutting Width Maximum (CWX) | 1/8″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1-1/4″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 1-1/4″ | Body Material | Steel |
| Functional Width (WF) | 1.2″ | Tool Type | Face Turning & grooving Tools |
| Head Length (LH) | 1.4″ | Measurement Type | Inch |
Product Features
| Family Description | HELI-GRIP external holders for turning, grooving & parting | Country of Origin | Israel |

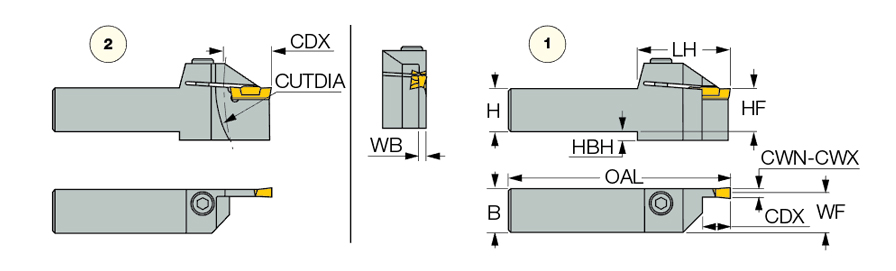

| Remarks | For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
LocalField10
0
Package Weight
2.91
