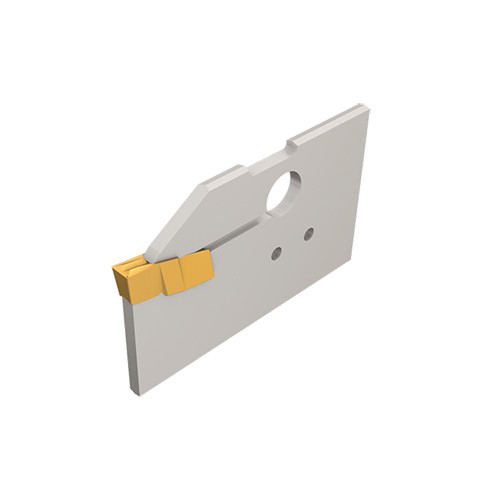

CGHN 32-4S

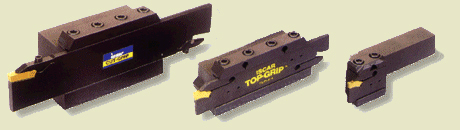

Single-ended blades, used for grooving and turning.

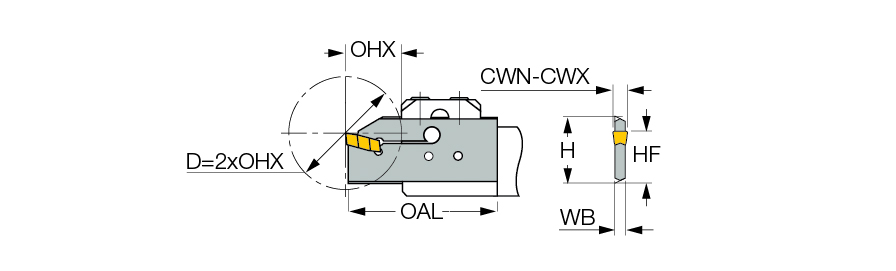

| Cutting Width Minimum (CWN) | 0.138″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Width Maximum (CWX) | 0.197″ | Body Material | Steel |
| Shank Height (H) | 1.26″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 2.087″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Single-ended blades, used for grooving and turning. | Country of Origin | Israel |
| Remarks | When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
Package Weight
0.090
